| Thread Diameter Size (TDZ) | 7/8″ | Chamfer | 3 to 5 Threads |
| Threads per Inch (TPI) | 14 | Coating | Uncoated |
| Thread Standard | NF | Flute Type | Straight |
| Overall Length (OAL) | 4-11/16″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 2-7/32″ | Style | Plug |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2046 |
| Thread Tolerance Class (TCTR) | H4 | Thread Size | 7/8″ - 14 |

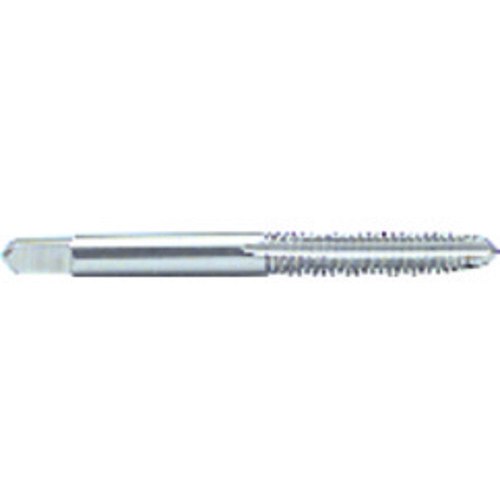

| Tool Type | General Purpose Tap |
Product Features
| Remarks | Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. |
Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
4.80000
Package Width
.90000
Package Height
.90000
Package Weight
0.47
