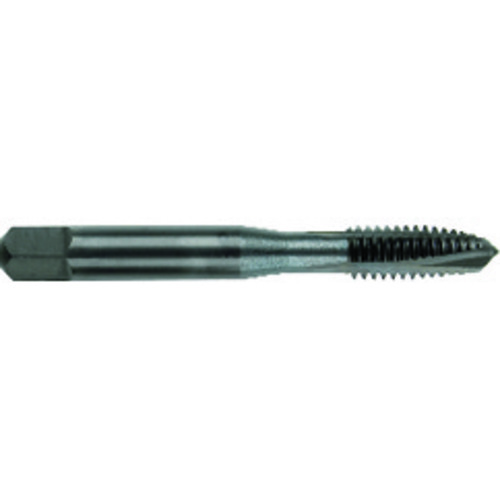

2101M ONYX M18 × 2.50

Item # MT7934819

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 34819

UPC #: 01040150 | 68612534819 | 686125348199

Quantity Available

Virtual Catalog

Thread Standard

Metric

Flute Count (NOF)

Thread Size

M18 × 2.5

Cutting Edge Material

HSS

Thread Diameter Size (TDZ)

M18

Tool Type

General Purpose Tap

Thread Pitch (TP)

2.5 mm

Thread Cutting Part Length (THL)

‎1-1/8″

Thread Tolerance Class (TCTR)

Flute Helix Angle (FHA)

52 Degrees

Overall Length (OAL)

‎4-1/32″

Flute Type

Spiral

Chamfer

Plug

Measurement Type

Metric

Coating

Black Oxide

Series/List #

2101M

Product Features

Remarks

• ONYX TAP - for tapping a wide range of materials up to 28Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Spiral Point Taps are designed for effcient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.• Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention. NOT RECOMMENDED FOR NON-FERROUS MATERIALS.

Country of Origin

USA

Shipping Info

LocalField10

Package Length

2.00000

Package Width

.20000

Package Height

.20000

Package Weight

0.22
