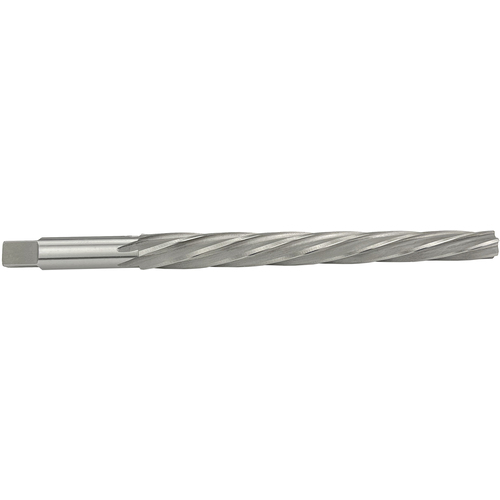

| Tool Type | Taper Pin Reamer | Flute Type | Helical |
| Size | #2 | Shank Type | Round |
| Cutting Diameter Minimum (DCN) | 0.1605″ | Large End Diameter | 0.2008″ |
| Cutting Diameter Maximum (DCX) | 0.2008″ | Small End Diameter | 0.1605″ |
| Length Chip Flute (LCF) | 1-15/16″ | Cutting Edge Material | HSS |
| Overall Length (OAL) | 3-3/16″ | Measurement Type | Wire Gauge |
Product Features
| Remarks | •Taper Pin Reamers •High Speed Steel •For reaming tapered holes that receive standard taper pins •Reamers have a taper of 1/4″ per foot • The point of each reamer will enter hole reamed by next smaller size •HELICAL FLUTE - Built for machine reaming of pin holes on a production basis. Helical construction prevents chips from packing in flutes and reduces breakage. Free cutting action at high speeds produces a fine finish. | Country of Origin | CN |
Shipping Info
Package Length
3.35000
Package Width
.20000
Package Height
.20000
Package Weight
.025
